PA9
Powernice

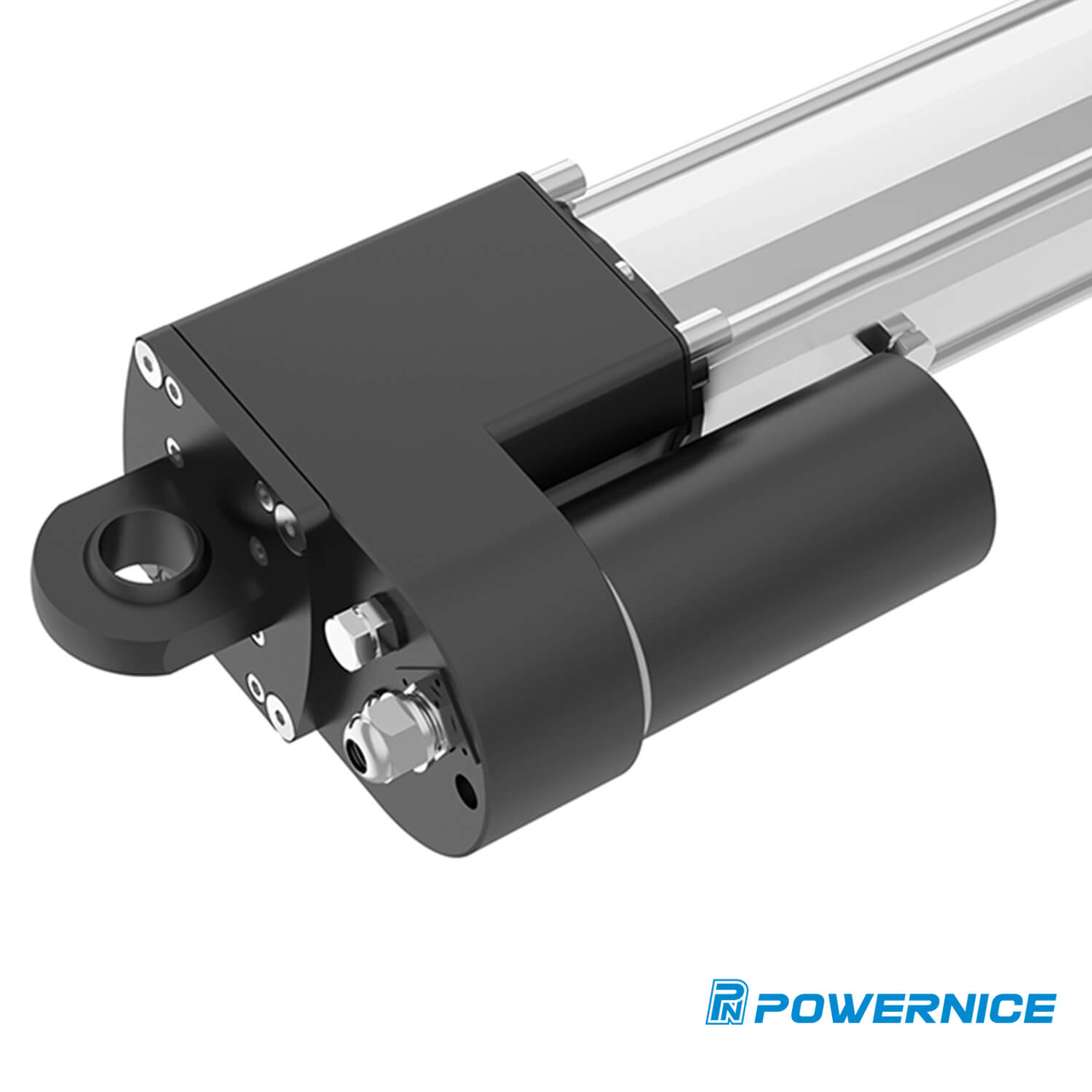

Solar Linear Tracker PA9:
The PA9 is extensively utilized in both one-in-portrait and two-in-portrait solar tracking systems, capable of implementing both single-point and multi-point electrical linkage drive methods.
With an impressive maximum thrust of 50000N, the PA9 reliably supports any regular solar tracking systems, ensuring efficient operation.
Equipped with a brushed motor compliant with protection class IP66 standards against dust and water splash, the PA9 offers a long service life of up to 25 years, ensuring durability and reliability.
Installation, disassembly, and transportation of the PA9 are straightforward, making it convenient for installation and maintenance.
The PA9 delivers high performance, efficiency, and quality, operating with minimal noise and offering cost-effectiveness and low maintenance requirements.
| Specified Load(N) | 31000 |
| Max Load(N) | 50000 |
| No-load Current(A) | ≤1.8 |
| Rated Load Speed(mm/s) | 1.2±10% |
| No-load Speed(mm/s) | 1.54±10% |
| Stroke(mm) | 100~1200(Customizable) |
| Installation Distance(mm) | ≥310+Stroke(Customizable) |
| Optional Function | Hall Sensor |
Solar Linear Tracker PA9:
The PA9 is extensively utilized in both one-in-portrait and two-in-portrait solar tracking systems, capable of implementing both single-point and multi-point electrical linkage drive methods.
With an impressive maximum thrust of 50000N, the PA9 reliably supports any regular solar tracking systems, ensuring efficient operation.
Equipped with a brushed motor compliant with protection class IP66 standards against dust and water splash, the PA9 offers a long service life of up to 25 years, ensuring durability and reliability.
Installation, disassembly, and transportation of the PA9 are straightforward, making it convenient for installation and maintenance.
The PA9 delivers high performance, efficiency, and quality, operating with minimal noise and offering cost-effectiveness and low maintenance requirements.
| Specified Load(N) | 31000 |
| Max Load(N) | 50000 |
| No-load Current(A) | ≤1.8 |
| Rated Load Speed(mm/s) | 1.2±10% |
| No-load Speed(mm/s) | 1.54±10% |
| Stroke(mm) | 100~1200(Customizable) |
| Installation Distance(mm) | ≥310+Stroke(Customizable) |
| Optional Function | Hall Sensor |
