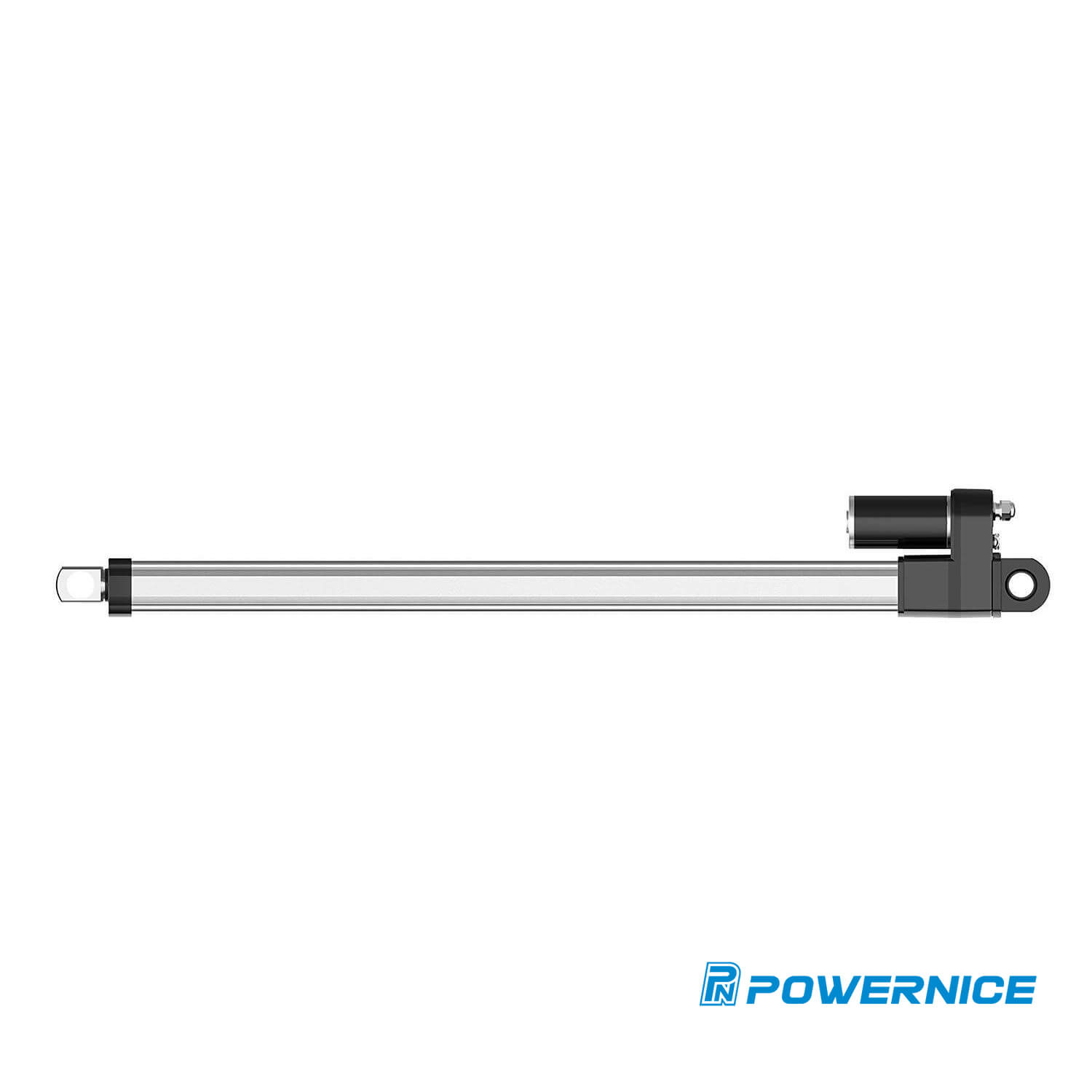

Solar Linear Tracker PA8:
PA8 is widely applied to the one-in-portrait and two-in-portrait solar tracking systems and is able to realize the single-point and multi-point electrical linkage drive methods.
35000N Maximum Thrust is able to support any regular solar tracking systems.
The brushed motor complies with protection class IP66 against dust and water splash. Long service life up to 25 years.
Easy to install, easy to disassemble, easy to transport;
High performance, high efficiency, high quality;
Low noise, low cost, low maintenance.
Specified Load(N):25000
Max Load(N):40000
No-load Current(A):≤1.2
Rated Load Speed(mm/s):1.3±10%
No-load Speed(mm/s):1.7±10%
Stroke(mm):100~1200(Customizable)
Installation Distance(mm):≥310+Stroke(Customizable)
Optional Function: Hall Sensor
