PA2
Powernice

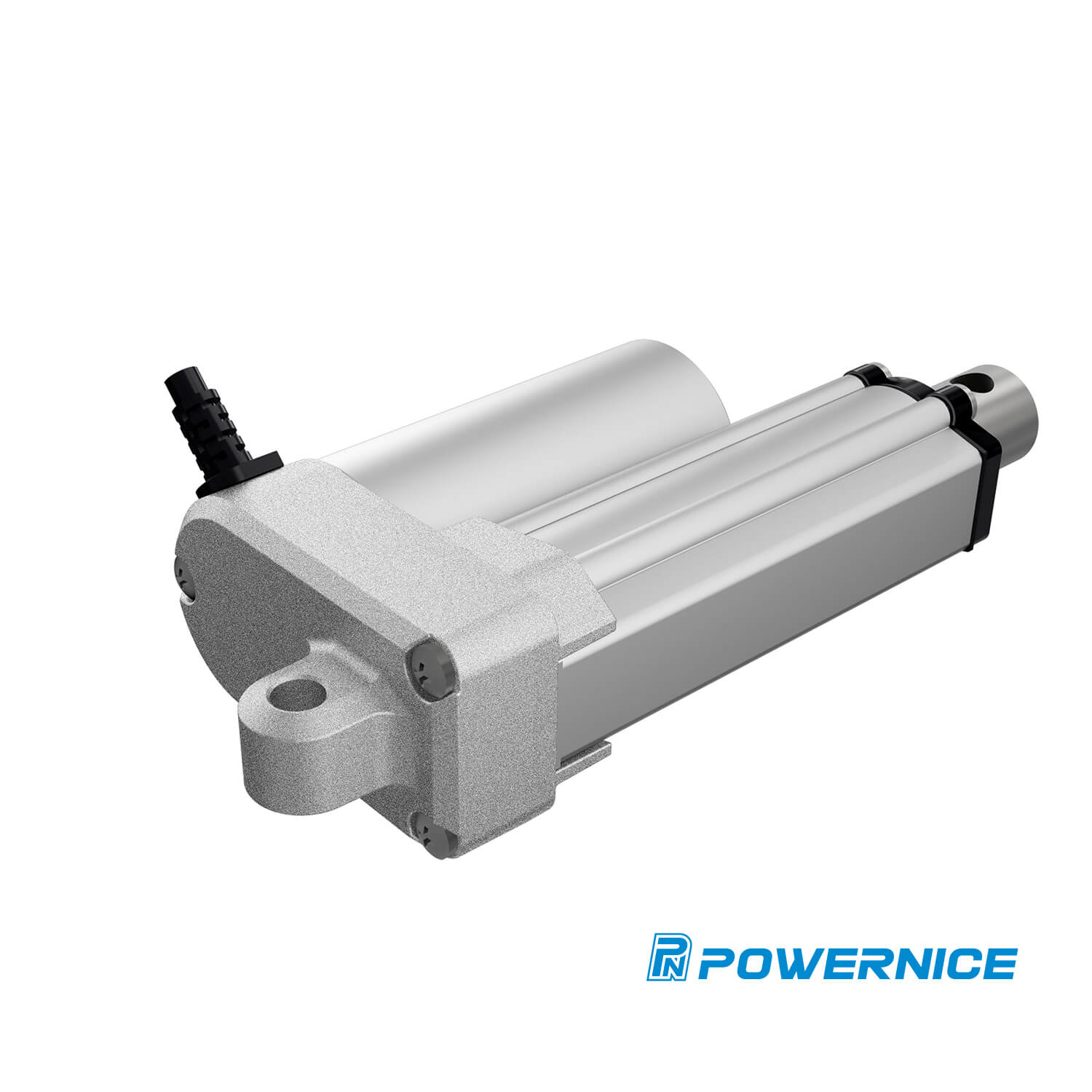

Linear Actuator PA2:
The PA2 Linear Actuator is extensively employed in electric beds, chairs, curtains, and doors. Equipped with a brushed motor conforming to the IP66 protection class, shielding against dust and water splash, it boasts an extended service life of up to 25 years.
This actuator is distinguished by its straightforward installation, disassembly, and transportation. It delivers superior performance, efficiency, and quality, all while operating with minimal noise levels. Furthermore, it offers cost-effectiveness and requires minimal maintenance.
Specifications:
Max Static Load: 1500N
Max Load: 1500N
No-load Current: 0.1~6A
Rated Load Speed: 3~20mm/s
No-load Speed: 4.8~30mm/s
Stroke: 30~800mm (Customizable)
Installation Distance: ≥115+Stroke (Customizable)
Optional Function: Hall Sensor
