PA18
Powernice

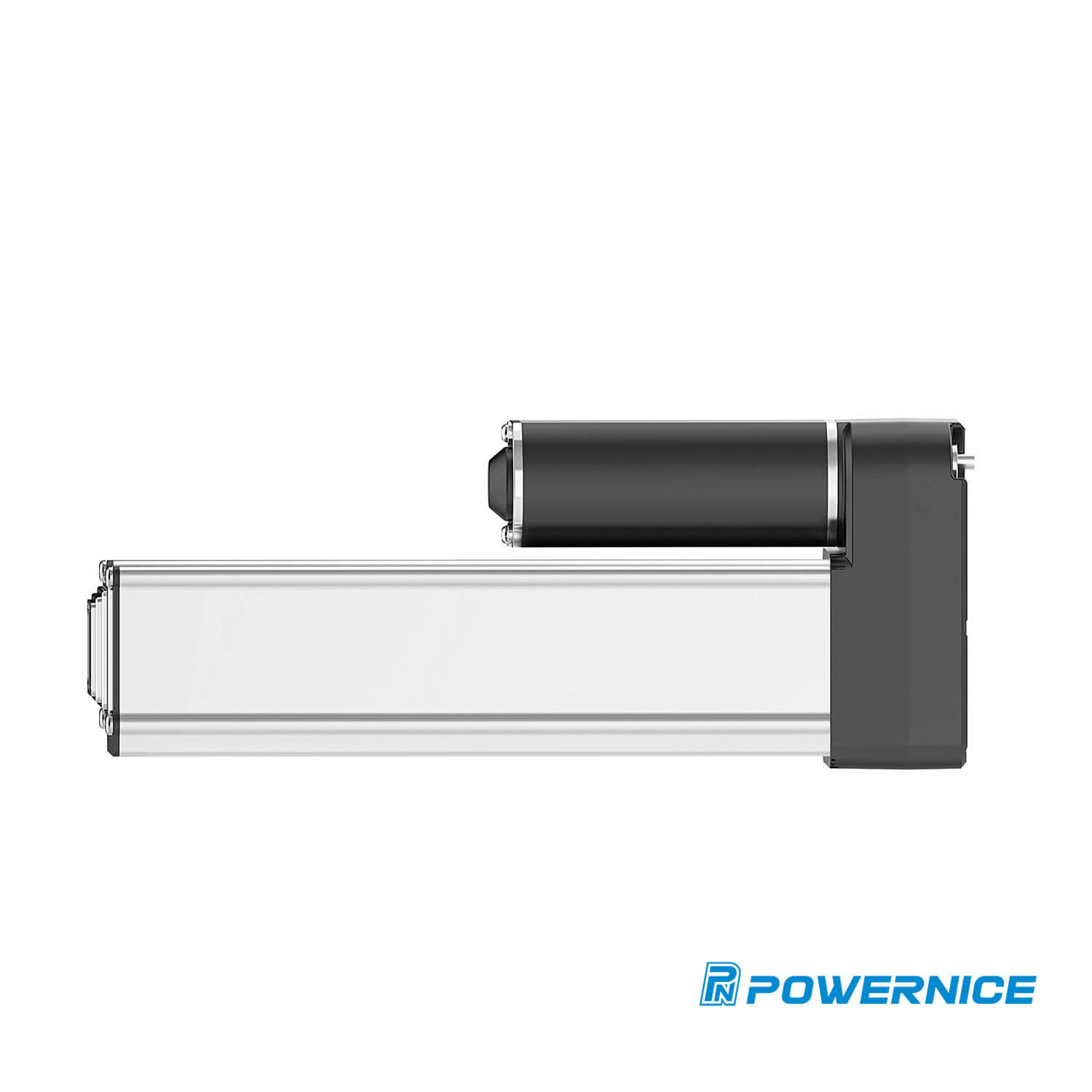

Linear Actuator PA18:
The PA18 Linear Actuator finds extensive use in electric beds, chairs, curtains, doors, and similar applications. Equipped with a brushed motor conforming to the IP66 protection class, it effectively shields against dust and water splash, boasting an impressive service life of up to 25 years.
This actuator is designed with user convenience in mind, offering straightforward installation, disassembly, and transport. It is distinguished by its high performance, efficiency, and quality. Operating with minimal noise, it ensures a quiet operational environment while maintaining cost-effectiveness and requiring minimal maintenance.
Specifications:
Max Static Load: 200N
Max Load: 200N
No-load Current: 0.1~6A
Rated Load Speed: 13mm/s
No-load Speed: 20mm/s
Stroke: 30~700mm (Customizable)
Installation Distance: ≥110+Stroke (Customizable)
Optional Function: Hall Sensor
