Did you know solar panels can boost energy output by following the sun? A solar tracker linear actuator makes this possible. It moves panels precisely to capture maximum sunlight.
In this post, you’ll learn what a solar tracker linear actuator is and why it’s vital for solar energy systems. We’ll also explore how these actuators improve panel performance.

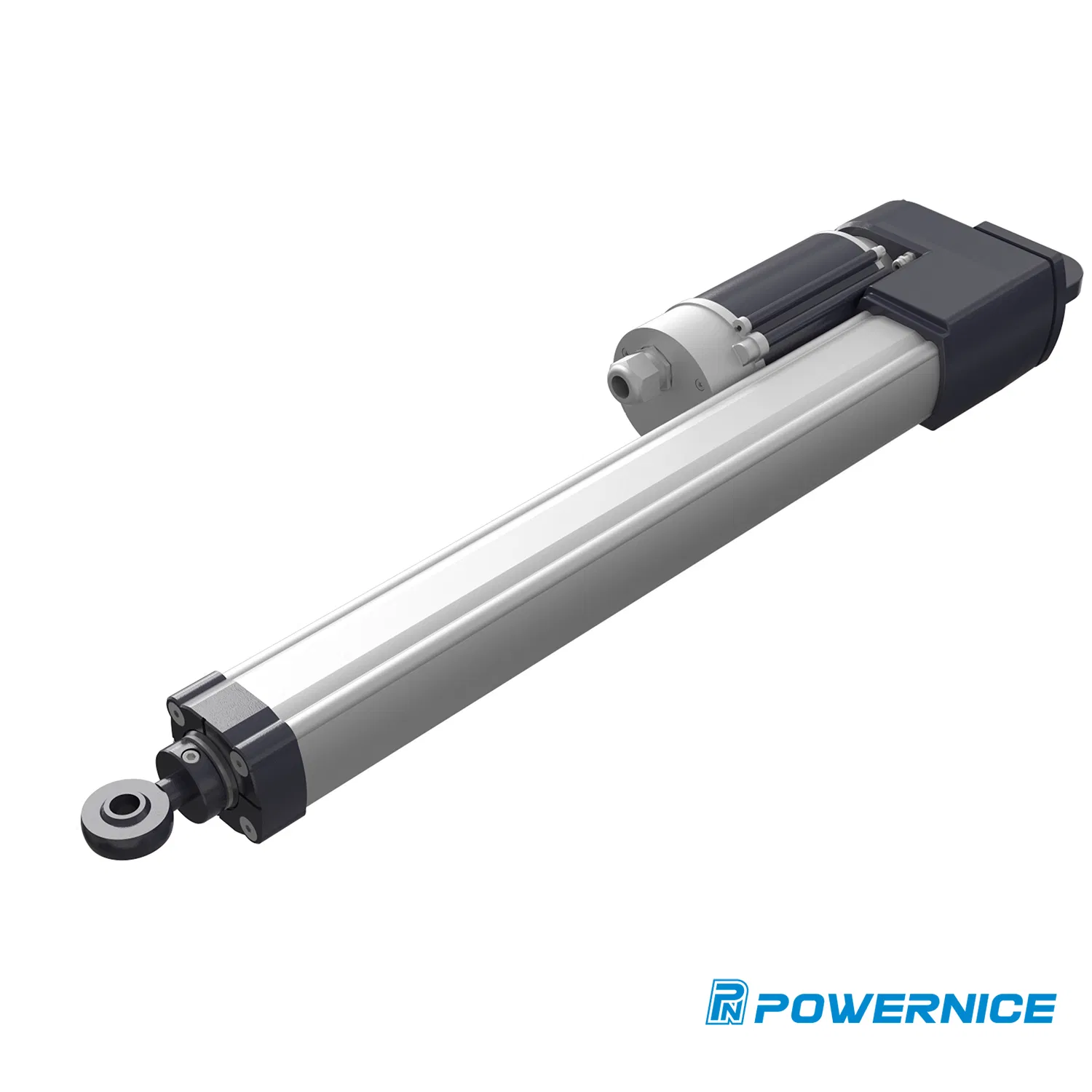

A solar tracker linear actuator converts electrical energy into mechanical motion in a straight line. It typically consists of a motor driving a screw or a rod that extends or retracts. This linear movement adjusts the position of solar panels to follow the sun’s path. The actuator’s push or pull force moves the panel smoothly and precisely, ensuring optimal angle alignment.
Solar trackers usually perform two primary movements:
Tilting: Adjusting the panel’s angle vertically to catch sunlight as it rises and sets.
Rotating: Turning the panel horizontally to follow the sun’s east-to-west trajectory.
Some trackers combine these motions for dual-axis tracking, maximizing solar exposure. Linear actuators are ideal for tilting because their straight push-pull action fits well with pivoting panel mounts. For rotation, actuators often work through linkages or gear systems that translate linear motion into rotation.
The actuator acts as the muscle behind the solar tracker. It pushes or pulls the panel frame, changing its orientation throughout the day. The linear motion provides controlled, smooth adjustments, preventing sudden jerks that could damage the panels or mounting structure.
In tilting applications, the actuator extends to raise the panel or retracts to lower it. The panel pivots around a hinge or axis, guided by brackets and supports. For rotation, the actuator’s linear movement may drive a linkage arm connected to a rotary bearing, turning the panel horizontally.
The actuator’s stroke length determines the range of motion, while its force rating ensures it can handle the panel’s weight plus wind loads. Speed and duty cycle specifications ensure it moves efficiently without overheating or wearing out prematurely.
Movement Type | Actuator Role | Typical Mechanism |
|---|---|---|
Tilting | Push/pull panel frame up/down | Linear extension/retraction |
Rotating | Drive linkage or gear for rotation | Linear motion converted to turn |
Proper integration of the linear actuator into the solar tracker mechanism ensures precise positioning, durability, and energy efficiency. It also simplifies control, as the actuator’s position feedback can be used to automate tracking based on sun position sensors or timers.
Tip: When designing solar trackers, always match the actuator’s stroke and force ratings to the panel size and expected wind loads to ensure reliable, long-lasting motion control.
When designing or selecting a solar tracker linear actuator, understanding its key components is crucial. Each part plays a role in ensuring smooth, reliable motion that keeps solar panels aligned for maximum energy capture.
The load path moves the actuator’s force into the solar panel structure. Brackets hold the actuator and panel frame, so they must be strong and properly spaced. Poor bracket design causes bending or misalignment, which can stall the actuator or damage the system. The load path should minimize side loads and ensure force runs straight through the actuator.
The actuator is the heart of the system. It must deliver enough force to move the panel, including extra for wind pressure or friction. Stroke length defines how far the actuator extends or retracts, controlling panel angle range. Speed determines how quickly the panel moves between positions, affecting tracking responsiveness. Duty cycle ratings show how long the actuator can run without overheating.
Actuators push or pull linearly, but the panel moves through pivots or slides. Guides, hinges, and slides control this motion path. They prevent binding or racking that could overload the actuator. Proper lubrication and alignment reduce friction and wear. End stops help avoid overtravel, protecting the actuator and brackets.
Controls turn commands into motion. They can be simple switches or complex controllers reading sun position sensors. Feedback mechanisms like potentiometers or Hall effect sensors provide actuator position data. This info allows precise panel positioning and synchronization. Proper wiring and calibration are essential to avoid missed positions.
The actuator needs a stable power source. Wiring must handle the current without overheating. Fuse placement protects against shorts. Connectors and strain relief prevent damage from vibration or movement. Accessibility for maintenance and inspection is important to keep the system reliable.
Safety stops the actuator if something goes wrong. Pinch points near moving parts need guards or sensors. Obstruction detection stops motion if the panel hits an obstacle, preventing damage. Manual overrides allow safe intervention during maintenance. Designing for safe failure modes keeps the system and operators protected.
Tip: Always test actuator brackets and guides by hand before powering; smooth manual motion predicts long-term reliability and prevents early failures.
When designing solar tracker linear actuators, several key factors shape the final system. Careful planning ensures smooth, reliable motion that maximizes solar panel output and avoids costly failures.
Start by clearly describing the movement needed. Is the actuator lifting, sliding, tilting, or pushing? This defines the actuator style and bracket layout. Next, calculate the load the actuator must move. Include the solar panel weight, wind forces, and friction from hinges or guides. Add a safety factor (often 1.5× or more) to handle unexpected stresses.
For example, a 35 lb panel may need an actuator rated for at least 53 lbs to move it safely. Measure the hardest part of the travel path, not just the easy middle. This avoids undersizing the actuator.
Good geometry means the actuator pushes or pulls in line with the load. Avoid side loads or bending forces that strain the actuator or brackets. Use guides, hinges, and slides to carry side forces and keep motion smooth. The actuator should move the load, not act as the guide. Proper load paths reduce wear and prevent stalls.
Solar trackers face tough outdoor conditions. Choose actuators rated for water and dust ingress (IP ratings). Materials should resist corrosion from rain, salt, or pollution. Vibration from wind or nearby machinery can loosen connections or damage components. Design wiring and mounts to withstand these stresses. Consider temperature extremes affecting actuator performance and lubrication.
Duty cycle defines how often the actuator runs without overheating. Solar trackers usually move slowly but may cycle many times daily. Pick actuators designed for continuous or frequent use. Speed affects tracking accuracy and energy use. Balance fast enough movement to follow the sun but slow enough to avoid mechanical shock or power waste.
Stroke length sets the range of panel motion. Measure the maximum required travel, including margin for mounting tolerances. The actuator’s voltage rating must match the power supply, commonly 12 V or 24 V DC in solar systems. Higher voltage actuators can move faster or handle heavier loads but require compatible controllers and wiring.
Tip: Always prototype the motion manually before powering the actuator; smooth hand movement reveals alignment or binding issues early, saving time and preventing damage.
Installing and testing solar tracker linear actuators carefully ensures smooth, reliable operation and long system life. Follow these steps to build confidence in your setup before powering the system.
Start by assembling the solar tracker mechanism without connecting power. Manually move the actuator and panel through their full range of motion. This helps detect binding, misalignment, or stiff spots early. If the mechanism feels rough or jams, adjust brackets, hinges, or guides until motion is smooth. Manual testing prevents damage that powered movement might cause.
Once the mechanism moves freely by hand, measure the actual load and friction involved. Use a force gauge or scale to check resistance at different points in the travel path, especially near the extremes where leverage or geometry can increase load. Knowing real load helps select an actuator with adequate force and safety margin. It also highlights friction sources to address before powering up.
After installing the actuator and connecting power, run multiple tracking cycles under real load and environmental conditions. Watch for consistent speed, noise, and temperature. Check if the actuator slows or stalls at any point. Repeated cycling reveals mechanical or electrical weaknesses early. Testing in actual weather, vibration, and dust conditions confirms system durability.
Inspect brackets and mounts during and after testing. Look for bending, loosening, or shifts caused by actuator force. Tighten or reinforce as needed. Also examine wiring for chafing, strain, or poor connectors. Secure wires to avoid movement or damage during panel motion. Proper bracket and wiring checks prevent failures and downtime.
Simulate failure modes like obstruction, power loss, or limit switch faults. Confirm the actuator stops or reverses safely without damage. Test manual overrides and reset functions to ensure operators can intervene if needed. Safety testing protects equipment and personnel, making the system more reliable in real-world use.
Tip: Always hand-move the solar tracker mechanism fully before powering; smooth manual operation predicts long-term reliability and avoids costly early failures.
Solar tracker linear actuators face several common problems that can reduce their performance or cause failures. Understanding these issues helps prevent costly repairs and downtime.
Brackets hold the actuator and panel in place. If brackets are too thin, poorly mounted, or misaligned, they can bend under actuator force. Bent brackets cause misalignment, leading to binding or stalling of the actuator. To avoid this, use strong materials and mount brackets securely. Keep the actuator’s force line straight through the load path. Regularly inspect and tighten brackets to maintain alignment.
Actuators stall when they cannot overcome the load or friction. This often happens if the actuator is undersized or the mechanism binds. Measure the actual load and friction before selecting an actuator. Add at least a 1.5 safety factor to the force rating. Ensure hinges, guides, and slides move smoothly without binding. Lubricate moving parts and check for debris or corrosion that increase resistance.
Overheating can damage the actuator motor or control electronics. It usually results from wiring faults, undersized wires, or poor connectors. Use wires rated for the actuator’s current draw and keep wire runs short. Protect wiring with fuses or circuit breakers. Secure connectors and strain relief to avoid vibration damage. Inspect wiring regularly for wear or corrosion.
Position feedback sensors help control panel angle precisely. Errors occur if sensors are wired incorrectly or not calibrated. This causes missed positions or erratic tracking. Match the feedback type to the controller requirements. Test full actuator travel during setup. Calibrate sensors after installation and after any mechanical adjustments.
Moving actuators create pinch points that can injure operators or damage equipment. Lack of guards or safety stops increases risk. Install physical guards around pinch points. Use obstruction detection sensors that stop motion if something blocks the actuator. Add manual overrides and emergency stops for safe maintenance. Design the system to fail safe in case of power loss or faults.
Tip: Regularly inspect brackets, wiring, and sensors to catch early signs of wear or misalignment before failures occur.
Imagine a solar panel weighing about 35 lbs needing 8 inches of travel for tilting. To pick the right actuator, start by calculating the load plus safety margin:
Base load = 35 lbs
Safety factor = 1.5×
Design load = 35 × 1.5 = 53 lbs
This safety factor covers unexpected forces like wind or friction. Note: If the actuator pushes at a bad angle or the hinge creates leverage, the force needed can double. Always measure the toughest part of the travel, not just the easy middle.
Solar tracker actuators find use beyond solar farms:
Agriculture: Adjusting greenhouse vents or shades based on sunlight.
Factory Automation: Moving inspection doors or machine guards safely and precisely.
Solar Farms: Tilting or rotating large solar arrays to maximize energy capture.
They provide reliable, repeatable motion in harsh outdoor environments, handling dust, vibration, and weather.
Different solar trackers call for specific actuator types:
Actuator Type | Best For | Key Features |
|---|---|---|
Standard Linear | Small to medium panels | Moderate force, compact size, affordable |
Heavy Duty Electric | Large panels or harsh load | High force, longer stroke, rugged design |
Utility Compact | Space-limited installations | Quiet operation, small footprint |
Choosing the right actuator depends on load, stroke length, speed, and environmental needs.
Firgelli offers several actuator lines ideal for solar trackers:
Super Duty Electric Actuators: Rugged, high force, optional feedback. Great for large solar arrays.
Utility Actuators: Compact, quiet, fit tight spaces. Perfect for smaller trackers or limited mounts.
Actuator Controllers (e.g., FCB-2): Provide precise control and feedback integration for automated solar tracking.
These products come with options for voltage, stroke length, and duty cycle to match project specs.
Tip: Always prototype the solar tracker mechanism manually first; smooth hand motion reveals alignment or binding issues early, saving costly fixes later.
Maximizing solar tracker performance starts with careful design and thorough testing of linear actuators. Measuring load accurately and guiding forces properly ensures smooth, reliable motion. Choosing the right actuator and control system boosts durability and tracking precision. Always prototype manually to detect issues early and secure brackets and wiring for long-term success. www.powernicesolar.com Ningbo Powernice Intelligent Technology Co., Ltd. offers advanced linear actuators that deliver dependable, efficient solutions for solar tracking needs. Their products enhance system reliability and energy capture.
A: A solar tracker linear actuator is a device that converts electrical energy into straight-line mechanical motion to adjust solar panels' angles, optimizing their position relative to the sun.
A: It extends or retracts to push or pull the panel frame up or down, changing its tilt angle smoothly for better sun exposure.
A: Because its linear push-pull motion fits well with panel tilting mechanisms, offering precise, durable, and efficient movement.
A: Cost depends on force rating, stroke length, speed, duty cycle, and environmental durability features.
A: Check for bracket misalignment, binding in hinges or guides, undersized actuator force, and electrical wiring issues.
