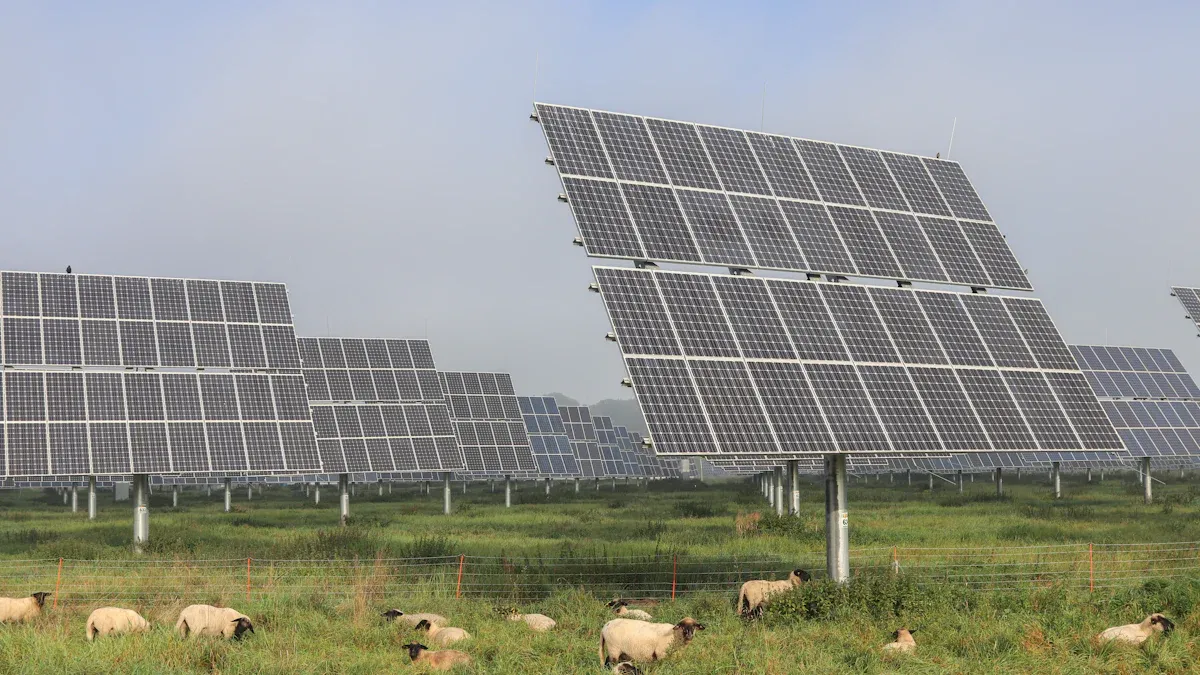

Did you know solar trackers can boost energy output by up to 40%? The key is precise panel movement. Solar Tracker Linear Actuator make this possible by adjusting panel angles smoothly. In this post, you’ll learn what these actuators are, why they matter, and how to choose the right one for your system.
The actuator must deliver enough force to move solar panels against gravity and wind. It needs to handle the panel weight, frame structure, and wind loads, especially during gusts. Typically, residential arrays require actuators rated between 1,000 and 5,000 Newtons (N), while large commercial systems may need 10,000 N or more. Always add a safety margin of 1.5 to 2 times the estimated force to ensure durability and reliable operation.
Stroke length determines how far the actuator extends or retracts, controlling the panel's tilt angle. A longer stroke allows a wider tracking range. For single-axis trackers, stroke lengths usually range from 150 mm to 600 mm, enabling tilt angles between ±45° and ±60°. The exact stroke depends on your panel geometry and linkage design, so measure carefully before selecting an actuator.
Solar trackers operate outdoors, exposed to rain, dust, sand, and humidity. Actuators must have a high IP (Ingress Protection) rating to resist these elements. The minimum recommended rating is IP65, which ensures dust-tight protection and resistance to water jets. For harsher environments like coastal or desert areas, IP66 or IP67 is preferred to withstand heavy rain, salt spray, or sandstorms. Proper sealing prevents corrosion and extends actuator life.
Solar trackers face wide temperature swings, from freezing cold to intense heat. Standard actuators often operate between -20°C and +50°C. For extreme climates, choose actuators rated for broader ranges, such as -30°C to +70°C. This ensures reliable performance year-round, avoiding failures due to thermal stress.
Actuators move slowly to follow the sun’s path, usually at speeds of 2 to 8 mm per second. Speed must be sufficient to complete the full tracking sweep during daylight and reset overnight. An optimal speed range is 3 to 5 mm/s, balancing smooth motion and energy consumption.
Precise position feedback lets controllers know the actuator’s exact position. Two common feedback types exist:
Hall Effect Sensors: Provide digital pulse signals tied to motor rotation. They offer high resolution, accuracy, and noise resistance, making them ideal for solar tracking.
Potentiometers: Output analog voltage corresponding to position. They are simpler but less precise and more prone to noise.
For best tracking accuracy, Hall effect sensors are recommended.
Most solar trackers run on 12V or 24V DC systems, though some commercial setups use 48V. Ensure the actuator voltage matches your system’s supply to avoid compatibility issues. Some industrial actuators support multiple voltages, allowing flexible integration with battery or grid power.
Tip: Always select actuators with at least IP66 rating and Hall effect feedback to ensure durability and precise solar tracking in harsh outdoor environments.
Start by calculating the force needed to move your solar panels. Consider the panel weight, frame size, and wind loads. Add a safety margin of 1.5 to 2 times the calculated force to handle gusts and unexpected stresses. For example, if your estimated force is 3,000 N, select an actuator rated for at least 4,500 to 6,000 N. This ensures long-term durability and reliable operation.
Measure the distance your actuator must extend or retract to achieve the desired tilt angle. The stroke length depends on your panel size and mounting design. Longer strokes allow a wider tracking range but may increase cost and complexity. For single-axis trackers, typical strokes range from 150 mm to 600 mm. Ensure the stroke matches your linkage geometry for smooth, full-range movement.
Choose an IP rating that suits your installation environment. For most outdoor solar trackers, IP66 is the minimum recommended rating. It protects against dust and powerful water jets. In harsher environments—deserts with sandstorms or coastal areas with salt spray—opt for IP67 or higher. Proper sealing prevents corrosion and keeps internal components safe.
Check your solar system’s voltage—commonly 12V, 24V, or 48V DC—and select an actuator compatible with that voltage. Using an actuator with the correct voltage avoids electrical issues and ensures efficient power use. Some industrial actuators support multiple voltages, offering flexibility for various system designs.
Feedback sensors tell your tracker controller the actuator’s exact position. Hall effect sensors provide digital pulses, offering high accuracy and noise resistance. Potentiometers give analog signals but are less precise and more prone to interference. For precise solar tracking, Hall effect sensors are usually the better choice.
Single-axis trackers typically use one actuator per tracker row to control tilt. Dual-axis trackers require two actuators—one for azimuth rotation and one for elevation tilt. Dual-axis setups need matched actuators with identical stroke lengths and speeds to avoid frame distortion. Choose your configuration based on your project’s precision and budget needs.
Determine the number of actuators based on panel weight and row length. One actuator often suffices for lightweight, short rows. For heavier or longer rows, use two actuators to distribute load evenly and improve reliability. A common guideline is one actuator per 8 to 12 standard panels in a row.
Tip: Always oversize actuator force by at least 50% to ensure reliable operation under wind loads and unexpected stresses.
Desert climates push solar tracker actuators to their limits. High temperatures can soar above 60°C, causing thermal stress on motors and electronics. Dust and fine sand infiltrate actuator seals, leading to abrasion and premature wear. To combat this, choose actuators rated for extended temperature ranges, such as -30°C to +70°C. Also, ensure dust-tight sealing with an IP66 or higher rating. Dust-scraper seals and robust connectors help prevent sand ingress. Using corrosion-resistant materials like anodized aluminum or stainless steel hardware improves durability.
Salt spray from oceans accelerates corrosion, especially on metal parts. Actuators installed near coasts require special protection. Look for IP67 or above to prevent water intrusion during storms and salt exposure. Stainless steel fasteners and corrosion-resistant coatings on actuator housing are critical. Sealed cable glands and UV-resistant cables reduce degradation from sun and salt. Periodic inspection and cleaning of exposed parts help extend service life.
In cold regions, actuators face freezing temperatures and heavy snow loads. Lubricants must remain fluid below -20°C to avoid motor stalling or screw binding. Choose actuators with cold-rated grease and components tested for low temperatures. Snow accumulation increases load, so select actuators with higher force ratings and robust mechanical design. Anti-freeze heating elements may be necessary for extreme cold to maintain operability.
Tropical zones bring high humidity and heavy rains, which can cause moisture ingress and corrosion. Actuators need IP66 or higher for water jet protection and sealed cable entries to prevent leaks. Tropical-grade coatings resist mold and corrosion. Insects and small animals can nest in actuator housings or cable conduits, so use protective mesh or sealed enclosures. UV-resistant cables and housings prevent sun damage.
For temperate continental climates, standard industrial actuators with IP65 to IP66 ratings suffice. Temperature swings from cold winters to warm summers require units rated for -20°C to +50°C operation. Dust and rain exposure is moderate, so standard sealing and corrosion-resistant materials work well. Routine maintenance ensures longevity.
Tip: Always match actuator IP rating and material coatings to your site's specific climate challenges to maximize lifespan and reduce maintenance costs.
Linear actuators convert motor rotation into straight push-pull motion. They use screw mechanisms—ball screws or trapezoidal screws—to extend or retract a rod. This rod adjusts the solar panel’s tilt, mainly controlling elevation. The motor spins the screw; the nut moves along it, driving linear travel.
Rotary drives, on the other hand, produce rotational motion. They combine gears, bearings, and a sealed housing to rotate the tracker around an axis, usually azimuth (east-west direction). The motor turns gears that spin the tracker frame, changing its horizontal angle.
Linear actuators excel in elevation control—tilting panels up or down. Their linear motion suits the simple push/pull needed for elevation adjustments. They handle axial loads well but don’t perform as strongly under side forces.
Rotary drives are best for azimuth control—rotating panels horizontally to follow the sun’s path. Their integrated gear systems provide high torque needed for long rows or heavy tracker structures. They manage combined radial and axial loads effectively.
Linear actuators often cost less upfront, especially for small to medium arrays. They are simpler to install and maintain but require careful mounting to avoid side-loading, which can reduce lifespan.
Rotary drives have higher initial costs due to complex gear and bearing systems. However, they offer robust performance and lower maintenance in harsh environments, thanks to sealed housings and strong torque capacity.
Rotary drives provide precise azimuth positioning, essential for accurate sun tracking over long tracker rows. Their gear backlash must be controlled to maintain accuracy, but good designs achieve tight tolerances.
Linear actuators offer precise elevation control with minimal backlash, especially when using ball screws. They deliver smooth, repeatable motion, critical for consistent panel tilt.
Rotary drives handle heavy loads and high wind forces better. Their integrated bearings support combined loads, reducing stress on components.
Linear actuators perform best under pure axial loads. Side forces or bending reduce their lifespan. Proper mounting to avoid lateral loads is crucial. Dust and moisture sealing also affect durability.
Tip: Match linear actuators to elevation adjustments and rotary drives to azimuth control for best performance and longevity in solar trackers.
Correct mounting is vital for actuator longevity. Always align the actuator so the force acts purely along its axis. Avoid side-loading, which stresses components and shortens life. Use clevis mounts or spherical bearings at both ends to allow free pivoting. This reduces bending moments and prevents binding. Ensure mounting points are rigid and properly spaced to support the actuator’s stroke. Check that the actuator can move smoothly through its full range without interference from frame parts or wiring.
Outdoor wiring must resist UV, moisture, and mechanical wear. Use UV-resistant, double-insulated cables rated for outdoor use. Protect cables with conduit or flexible tubing to prevent abrasion and damage from wind or animals. Seal cable entry points with waterproof glands to keep moisture out of actuator housings. For long cable runs or multiple actuators, consider pre-assembled harnesses to simplify installation and reduce wiring errors. Label wires clearly for easy troubleshooting and future maintenance.
Ensure compatibility between actuator feedback type and tracker controller. Hall effect sensors require digital inputs, while potentiometers use analog inputs. Program end-stop limits slightly before mechanical stops to avoid damage. Set current limits in controllers to detect stalls or jams early. Synchronize multiple actuators in long rows using closed-loop control to maintain uniform panel alignment. Test communication signals during commissioning to confirm accurate position reporting.
Though electric linear actuators are low maintenance, periodic checks are essential. Inspect mounting bolts, clevis pins, and bearings annually to confirm tightness and absence of wear. Examine cables and connectors for cracks, corrosion, or water ingress. Lubricate internal lead screws every 1-2 years if the actuator is not lifetime-lubricated. After severe weather, verify actuator operation and look for physical damage. Keep maintenance logs to track actuator condition over time.
Common problems include actuator stall, slow movement, or loss of position feedback. Check wiring connections and sensor signals first. Inspect for mechanical binding caused by misalignment or debris. Verify power supply voltage and current limits. Replace worn clevis pins or mounts to restore smooth motion. Use controller diagnostics to identify motor overload or sensor faults. Prevent issues by ensuring proper mounting, correct wiring, and environmental sealing during installation.
Tip: Always mount actuators using pivoting clevis joints and protect wiring with UV-resistant conduit to ensure smooth operation and long service life in outdoor solar tracking systems.
Standard linear actuators generally lack the ruggedness needed for solar tracking. They often have lower IP ratings, insufficient temperature ranges, and limited cycle life. Using them outdoors exposes them to dust, moisture, and temperature swings that can cause early failure. For small residential setups in mild climates, they might work temporarily. But for commercial or utility-scale systems, industrial-grade actuators designed for harsh environments are essential. They provide reliable performance, weather resistance, and longer service life.
Force requirements depend on panel weight, size, and wind loads. For small residential arrays (1–10 panels), actuators rated 1,000 to 3,000 Newtons usually suffice. Medium-sized commercial arrays (10–30 panels) require 3,000 to 6,000 Newtons. Large utility-scale systems with long rows and heavy frames may need 8,000 to 10,000 Newtons or more. Always add a safety margin of 1.5 to 2 times the calculated force to handle gusts and dynamic loads. Consulting structural engineers and using force calculators helps ensure correct sizing.
Properly specified and installed actuators last 10 to 15 years, matching typical solar panel lifespans. Key factors affecting longevity include:
Correct force and stroke sizing
High IP rating to prevent corrosion
Suitable temperature rating for climate
Proper mounting to avoid side loads
Protected wiring and connectors
Industrial actuators tested for 50,000+ cycles under rated loads demonstrate this durability. Routine inspections and minimal lubrication extend life further.
Yes. Long rows (typically over 30 meters) experience uneven torque if driven by a single actuator. This can cause frame distortion and uneven panel tilt. Using two synchronized actuators spaced along the row balances loads and maintains alignment. Closed-loop control systems ensure both actuators move in unison within a few millimeters of each other. This reduces mechanical stress and improves tracking accuracy.
Actuators consume power only during movement, which is intermittent. Properly sized actuators running at optimal speeds minimize energy use. Excessive force requirements or frequent retractions increase consumption. Intelligent control algorithms reduce unnecessary movements and optimize tracking paths. Overall, the energy gained by tracking the sun far outweighs actuator power use, improving net system output by 25–40%. Efficient actuators with matched voltage and current ratings further reduce parasitic losses.
Tip: Always specify industrial-grade actuators with appropriate force ratings and IP protection to ensure reliable, long-lasting solar tracker operation and maximize energy yield.
Choosing the right linear actuator is essential for optimal solar tracker performance. Key specifications include force capacity, stroke length, IP rating, and feedback type. Industrial-grade actuators ensure durability, precision, and resistance to harsh environments. Future trends focus on intelligent tracking and predictive maintenance for improved efficiency. Buyers and system integrators should prioritize quality and compatibility for long-term reliability. www.powernicesolar.com Ningbo Powernice Intelligent Technology Co., Ltd. offers advanced solar tracker linear actuators that deliver robust performance and value in diverse climates.
A: A Solar Tracker Linear Actuator is a device that moves solar panels by extending or retracting to adjust their tilt, optimizing sun exposure for maximum energy capture.
A: Force rating ensures the actuator can handle panel weight and wind loads reliably, preventing mechanical failure and maintaining smooth solar tracking.
A: A high IP rating protects the actuator from dust and water, essential for durability in outdoor solar tracking environments.
A: Check wiring, sensor feedback, and mounting alignment to resolve stalls or slow movement in Solar Tracker Linear Actuators.
A: Linear actuators control panel tilt (elevation), while rotary drives handle horizontal rotation (azimuth), each suited for specific solar tracking functions.
