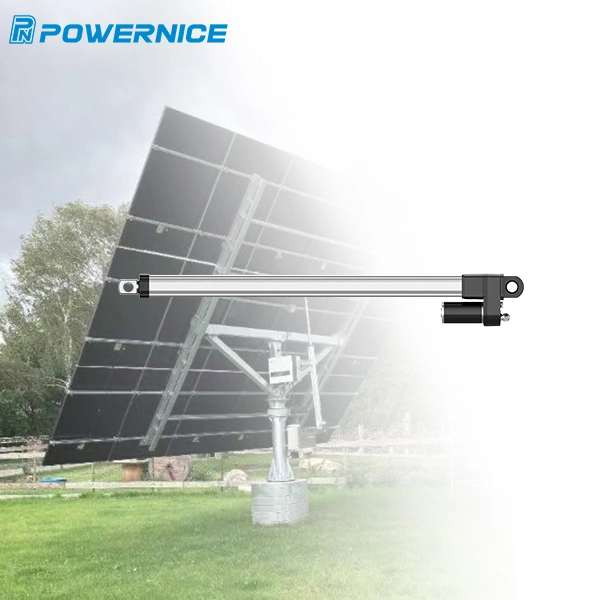

Ever wondered how solar panels follow the sun? Solar Tracker Linear Actuator make this possible. They boost photovoltaic system efficiency by adjusting panel angles precisely. In this post, you'll learn what solar tracker linear actuators are, why they matter, and how they improve solar tracking systems.

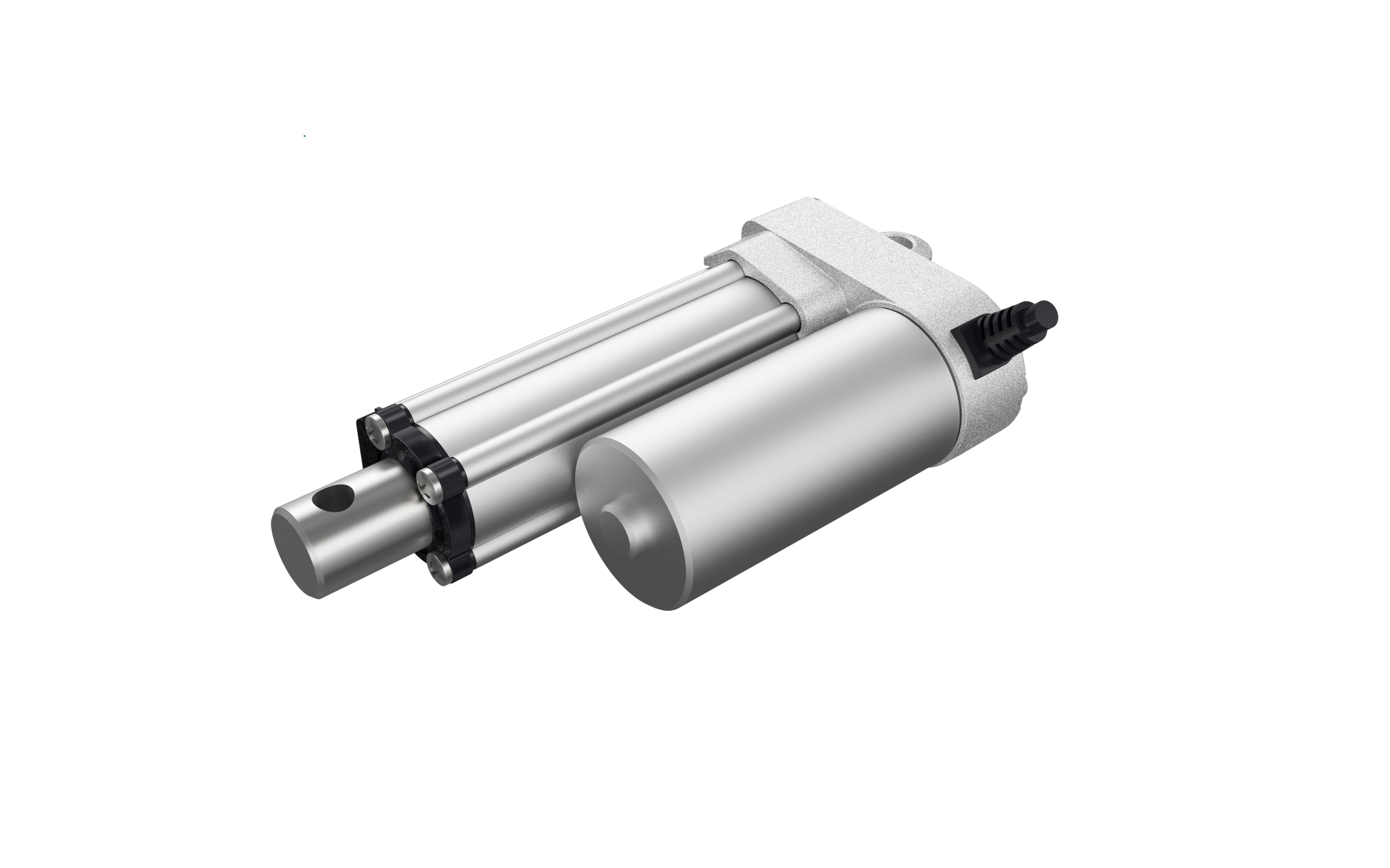

A linear actuator is a device that creates straight-line motion. Unlike motors that spin, it pushes or pulls in a linear path. In solar tracking, actuators adjust the angle of solar panels so they face the sun throughout the day. They convert electrical energy into mechanical movement by turning a motor-driven screw or similar mechanism. This precise motion helps solar panels follow the sun’s path, increasing energy capture.
There are several types of linear actuators used in solar tracking systems:
Electric linear actuators: The most common choice. They use an electric motor to drive a screw that extends or retracts the actuator rod. These actuators are efficient, easy to control, and require little maintenance.
Hydraulic actuators: Use fluid pressure to generate motion. While powerful, they are less common in solar tracking due to complexity, risk of leaks, and higher maintenance.
Pneumatic actuators: Operate using compressed air. Rare in solar tracking because they need an air supply and are less precise.
Mechanical actuators: Include screw jacks or gear systems. Mostly manual or semi-automatic, not widely used for automated solar tracking.
Electric linear actuators dominate solar tracking due to their reliability, precision, and integration ease.
Electric linear actuators have largely replaced hydraulic types in solar tracking. Here’s why:
Simplicity: Electric actuators need just wiring and a power source, while hydraulics require pumps, fluid reservoirs, and complex plumbing.
Maintenance: Electric actuators have fewer moving parts and no fluid to leak or replace.
Control: Electric actuators integrate easily with digital controllers for precise positioning and feedback.
Cost: Generally lower initial and lifecycle costs than hydraulics.
Environment: Electric actuators avoid fluid leaks that could harm the environment.
Hydraulic actuators still find use in very large or heavy-duty systems where extreme force is needed, but electric actuators cover most residential and commercial solar tracking needs.
Note: Electric linear actuators offer an ideal balance of precision, durability, and ease of integration, making them the preferred choice for modern solar tracking systems.
Selecting the right linear actuator for your solar tracker is crucial. It ensures smooth, reliable panel movement and maximizes energy capture. Let’s break down the key specifications you should consider:
Your actuator must handle the weight of solar panels and resist wind pressure. Bigger panels and stronger winds demand higher force capacity. Calculate the total load including panel weight, mounting frame, and expected wind force. Always add a safety margin—usually 1.5 to 2 times the estimated load—to prevent actuator failure.
For example, residential arrays often need actuators rated around 1,000 to 5,000 newtons (N), while commercial setups might require 10,000 N or more. Choosing an actuator with insufficient force risks damage or poor tracking performance.
Stroke length is how far the actuator rod extends or retracts. This length controls how much your panels can tilt. Longer strokes allow wider tilt angles, improving sun tracking accuracy.
Typical stroke lengths range from 150 mm to 600 mm. The exact length depends on your tracker’s mechanical linkage and desired tilt range, often ±45° to ±60°. Measure carefully—too short a stroke limits tracking, while too long adds unnecessary cost and size.
Solar trackers face harsh outdoor environments: rain, dust, sand, and sometimes salt spray. The IP (Ingress Protection) rating tells you how well the actuator resists water and dust.
For most solar applications, an IP65 rating is the minimum—dust tight and protected against water jets. In harsher climates (coastal or desert), aim for IP66 or IP67 for better sealing. An actuator with poor sealing will corrode or fail quickly.
Solar trackers operate in varied climates, from freezing cold to scorching heat. Check the actuator’s rated temperature range to ensure reliable operation year-round.
Standard actuators usually work between -20°C and +50°C. For extreme environments, look for models rated from -30°C up to +70°C. This prevents performance loss or damage due to temperature stress.
Solar panels don’t need to move fast—sun moves roughly 15 degrees per hour. Most actuators move between 2 to 8 mm per second, which is sufficient.
The actuator should complete the full tracking sweep during daylight and reset overnight. Typical speeds around 3 to 5 mm/s balance smooth motion and energy efficiency.
Precise positioning improves tracking accuracy. Actuators with feedback sensors report their position to the controller.
Hall Effect Sensors: Provide digital pulses proportional to movement. They offer high accuracy and noise resistance, ideal for solar trackers.
Potentiometers: Output analog voltage corresponding to position. Simpler but less precise.
Hall effect sensors are generally preferred for their precision and reliability.
Match actuator voltage to your solar system’s power supply. Common voltages are 12V DC for small residential setups and 24V or 48V DC for commercial systems.
Choosing the correct voltage ensures efficient power use and prevents damage. Many actuators support multiple voltages, offering flexibility for various solar configurations.
Tip: Always calculate your actuator’s force needs by including panel weight, wind loads, and a safety margin to ensure reliable, long-lasting solar tracking performance.
Solar trackers mainly come in two configurations: single-axis and dual-axis. Single-axis trackers rotate solar panels along one horizontal axis, usually east to west. They require just one linear actuator per tracker or per tracker row. This actuator pushes or pulls to tilt the panels, following the sun’s daily path. Single-axis systems are simpler, cost-effective, and common in residential and commercial projects.
Dual-axis trackers adjust panels on two axes: horizontal (azimuth) and vertical (elevation). They need two actuators—one for each axis. This setup allows panels to follow the sun more precisely, boosting energy capture, especially in high-latitude or concentrated solar power applications. Dual-axis trackers are more complex and expensive but deliver higher efficiency.
The number of actuators depends on tracker size, weight, and design. For small, lightweight arrays, one actuator per tracker table often suffices. Larger or longer tracker rows may need two actuators to avoid bending stress and maintain even panel tilt. A good rule of thumb is one actuator per 8 to 12 standard solar panels in a row.
For dual-axis systems, two actuators per tracker are standard—one for azimuth rotation, one for elevation tilt. Both actuators should match in speed, stroke length, and force to prevent frame distortion.
Residential: Small solar arrays on rooftops or yards usually use single-axis trackers with one 12V or 24V actuator. These systems benefit from low cost and easy installation.
Commercial: Medium-sized solar farms often deploy single-axis trackers with heavier-duty actuators (up to 5,000 N force). Some commercial projects use dual-axis trackers for better performance.
Industrial: Large utility-scale solar farms use robust actuators rated for 10,000 N or more. Dual-axis trackers may be employed for precision and maximum yield, especially in research or concentrated solar power plants.
DIY enthusiasts and educators often build Arduino-controlled solar trackers. These projects use small linear actuators combined with light sensors or GPS modules to automate panel movement. Arduino boards read sensor data and control actuators via motor drivers, enabling precise sun tracking.
Such projects demonstrate actuator integration in small-scale systems and help users learn about renewable energy automation. Models like the 12V DC linear actuator with hall effect feedback are popular for these applications due to ease of control and sufficient power.
Tip: When designing or selecting a solar tracker system, always match actuator count and specifications to panel size and tracker type to ensure smooth, reliable operation and maximize energy yield.
Choosing the right solar tracker linear actuator means thinking about the environment where it will operate. Different climates pose unique challenges that affect actuator performance and durability.
Desert Climates: Actuators in deserts face extreme heat, dust, and sand. Actuators must have a high IP rating (IP66 or above) to keep dust and sand out. They also need to operate reliably at high temperatures, often from -30°C up to +70°C. Dust-sealed connectors and robust enclosures prevent abrasion and damage.
Coastal Areas: Salt spray and humidity cause corrosion. Actuators here should use corrosion-resistant materials like stainless steel hardware and anodized aluminum housings. An IP67 rating is recommended for protection against water immersion and salt spray.
Tropical Regions: High humidity, heavy rain, and insects are common. Actuators need tropical-grade coatings and sealed cable entries to prevent moisture ingress and insect damage. IP66 or higher is ideal to withstand frequent wet conditions.
Cold Climates: Freezing temperatures and snow loads demand actuators rated for low temperatures, sometimes down to -30°C or lower. Lubricants must remain effective in cold weather to avoid stiffness. Higher force ratings may be necessary to overcome snow weight on panels.
Materials and sealing are critical for actuator longevity:
Use corrosion-resistant metals like stainless steel or anodized aluminum.
Rubber or silicone seals prevent water and dust entry.
UV-resistant cable jackets and connectors withstand sun exposure.
High-quality grease or dry lubricants ensure smooth operation over time.
Consider actuators with IP66, IP67, or better ratings depending on exposure.
To maximize service life:
Choose actuators tested for wide temperature ranges.
Verify IP ratings match the harshest expected weather.
Use protective covers or housings if possible.
Schedule regular inspections after storms or harsh seasons.
Replace worn seals and lubricate moving parts periodically.
Manufacturers specializing in solar actuators often offer models tailored for specific climates. Selecting such products reduces downtime and maintenance costs while improving tracking precision.
Tip: Always match actuator IP rating and material specs to your site’s climate to ensure reliable, long-lasting solar tracking performance.
Choosing between heavy-duty and standard actuators depends largely on the size, weight, and environmental demands of your solar tracking system. Standard actuators are typically sufficient for small to medium residential or commercial arrays. They offer reliable performance for panel weights up to several hundred kilograms and moderate wind loads.
Heavy-duty actuators become necessary when:
Panels or arrays are large and heavy, requiring greater force to move.
Wind loads are high, common in exposed or elevated sites.
The system is industrial scale, with longer tracker rows or dual-axis setups.
Harsh environmental conditions demand rugged construction and enhanced durability.
In such cases, heavy-duty actuators provide higher load capacity, sturdier build quality, and longer service life, preventing premature failure and costly downtime.
High-torque actuators deliver the extra mechanical advantage needed to move heavy solar panels smoothly and precisely. Benefits include:
Improved control: High torque ensures steady, accurate positioning even under wind gusts.
Reduced strain: Less motor stress extends actuator lifespan and reduces maintenance.
Greater safety margin: Handles unexpected loads like snow accumulation or debris.
Compatibility with larger frames: Supports bigger panel sizes and complex mounting structures.
These actuators often feature reinforced gears, stronger motors, and advanced feedback systems to maintain reliable operation in demanding conditions.
For commercial solar farms or industrial projects, actuators rated for forces around 1 ton (approximately 9,800 newtons) or higher are common. Examples include:
1 Ton Linear Actuator: Designed for heavy solar arrays, offering forces near 10,000 N. Ideal for large single-axis trackers or dual-axis systems with heavy panels.
High-Force Actuators: Models rated up to 15,000 N or more, used in utility-scale solar farms or concentrated solar power plants. They provide robust movement under extreme wind and load conditions.
Industrial Grade Actuators: Often IP66 or higher rated, with corrosion-resistant housings and temperature ranges from -30°C to +70°C, ensuring durability outdoors.
These actuators support reliable, long-term operation in commercial settings, maximizing energy yield while minimizing maintenance costs.
Tip: For heavy or large solar arrays, always select actuators with at least a 1.5 to 2 times safety factor over calculated load to ensure durability and prevent costly failures.
Choosing between AC and DC solar tracker linear actuators depends on your system’s power source and design goals. Both types offer distinct advantages and suit different solar setups.
DC actuators are the most common choice for solar trackers powered by battery systems. They run directly on the DC voltage stored in solar batteries, usually 12V, 24V, or 48V. This direct compatibility reduces the need for extra power conversion equipment, improving overall system efficiency.
Benefits include:
Energy efficiency: DC actuators draw power directly from solar batteries, minimizing conversion losses.
Simpler wiring: No need for AC inverters or transformers simplifies installation.
Smooth control: DC motors offer precise speed and position control, ideal for accurate solar tracking.
Lower cost: Generally less expensive than AC actuators due to simpler electronics.
Battery-friendly: Operate well with battery voltage fluctuations common in solar setups.
For off-grid solar systems or those relying heavily on battery storage, DC actuators provide reliable, efficient performance.
AC actuators run on alternating current, typically 110V or 220V, matching grid power standards. They suit solar tracking systems connected to the electrical grid or hybrid setups combining grid and solar power.
Advantages include:
Stable power supply: Grid power provides consistent voltage, ensuring steady actuator operation.
Higher power availability: AC actuators can handle larger loads or faster speeds in some cases.
Integration with existing infrastructure: Easier to retrofit into installations already wired for AC power.
Reduced battery dependency: Useful where battery backup is minimal or absent.
In grid-tied solar farms or hybrid systems, AC actuators offer a practical solution, especially for larger commercial installations.
Solar tracker actuators come in various voltage ratings to match system requirements:
Voltage | Typical Use Cases | Notes |
|---|---|---|
12V DC | Small residential systems, off-grid setups | Compatible with 12V battery banks |
24V DC | Medium to large residential, commercial arrays | Common in commercial solar systems |
48V DC | Large commercial, utility-scale solar farms | Higher voltage reduces current, improving efficiency |
110/220V AC | Grid-connected or hybrid solar tracking systems | Requires AC power source or inverter |
Selecting the correct voltage ensures efficient operation and prevents damage. Many actuators support multiple DC voltages, offering flexibility for system upgrades or expansions.
Tip: Match actuator voltage to your solar power source—use DC actuators for battery-based systems and AC actuators for grid-connected or hybrid setups to optimize efficiency and reliability.
Proper mounting ensures smooth operation and long actuator life. Use clevis or eye mounts at both ends to allow pivoting and avoid side loads that cause wear. The actuator should align with the solar tracker’s motion axis to prevent bending forces. Avoid rigid mounting points that restrict movement.
For wiring, use UV-resistant, weatherproof cables and secure them with conduit or cable ties. Waterproof cable glands prevent moisture entry. Keep wiring away from sharp edges or moving parts to avoid damage. For multi-actuator setups, consider pre-wired harnesses to simplify installation and reduce errors.
Actuators with feedback sensors require compatible controllers. Hall effect sensors provide digital pulse signals, while potentiometers output analog voltage. Ensure the controller can read the actuator’s feedback type to track position accurately.
Program software limits slightly inside the actuator’s mechanical stops to prevent damage. Include current-limit or stall detection to protect actuators from overload. Synchronize multiple actuators to avoid frame distortion, especially in long tracker rows.
Electric linear actuators need minimal maintenance but regular checks help avoid failures. Inspect mounting bolts and pivot points for tightness and wear annually. Check cable insulation and connectors for weather damage.
Lubricate the lead screw if the actuator is not sealed for life, typically every 1–2 years. After storms or extreme weather, verify actuator range of motion and look for physical damage. Replace worn seals or cables promptly to maintain weatherproofing.
Select suppliers experienced in solar tracking applications. Look for manufacturers offering:
Actuators with IP65 or higher ratings for outdoor use
Extended temperature range models for your climate
Feedback sensor options for precise control
Technical support and customization services
Proven track record in solar or renewable energy sectors
Quality suppliers provide detailed datasheets, certifications, and warranty coverage. They also assist with sizing and integration advice to optimize your system.
Tip: Always verify actuator mounting allows free pivoting and use weatherproof wiring to prevent premature failures and ensure reliable solar tracker operation.
Choosing the right solar tracker linear actuator involves considering force capacity, stroke length, and weather resistance. Proper selection improves energy yield and system automation. Advances in actuator technology continue to enhance precision and durability. Ningbo Powernice Intelligent Technology Co., Ltd. offers reliable, high-quality actuators designed to optimize solar tracking performance and ensure long-lasting operation. Their products deliver excellent value through durability, precision control, and seamless integration with solar PV systems.
A: A Solar Tracker Linear Actuator is a device that moves solar panels in a straight line to adjust their angle, helping them follow the sun’s path for maximum energy capture.
A: Electric actuators are simpler, require less maintenance, offer precise control, and are more cost-effective for most solar tracking applications.
A: Calculate the total load including panel weight and wind force, then choose an actuator with 1.5 to 2 times that load for safety and durability.
A: Regularly inspect mounts and wiring, lubricate if needed, check seals, and ensure weatherproofing to extend actuator lifespan.
A: The IP rating indicates protection against dust and water; higher ratings like IP66 or IP67 ensure durability in harsh outdoor environments.
A: Yes, they come in DC versions for battery systems and AC versions for grid-connected setups, matching the solar system’s voltage and power type.
